Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | NI4U-EG08-AP6X-H1341 |
| Body Style | Cylindrical |
| Diameter | 8 mm |
| Dimensions | 57 x 8 mm |
| Housing Material | Stainless Steel |
| IP Rating | IP68 |
| Length | 2.244" (57mm) |
| Maximum Operating Temperature | 85 C |
| Measurement Range | 4 mm |
| Minimum Operating Temperature | -30 C |
| Mounting Type | Non-Flush |
| Operating Temperature, Maximum | 85 C |
| Operating Temperature, Minimum | -30 C |
| Output | PNP |
| Primary Type | Inductive Proximity Sensors |
| Shielding | Unshielded |
| Shop By | Factory Choice |
| Size, Thread | M8 x 1 |
| Supply Voltage | 10-30 VDC |
| Terminal Type | M12 Connector |
| Thread Size | M8 x 1 |
| UPC Code | 5056070959569 |
Overview

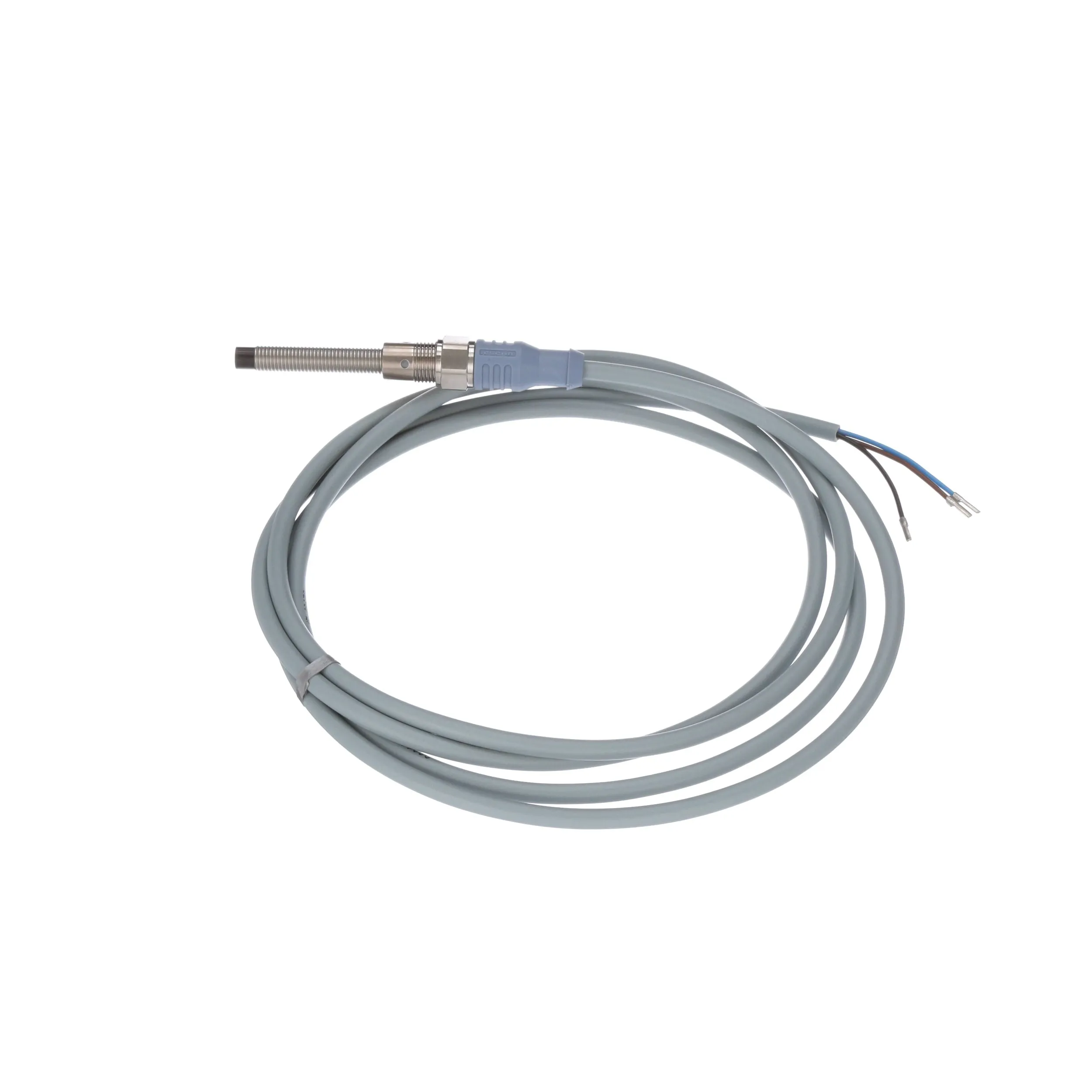

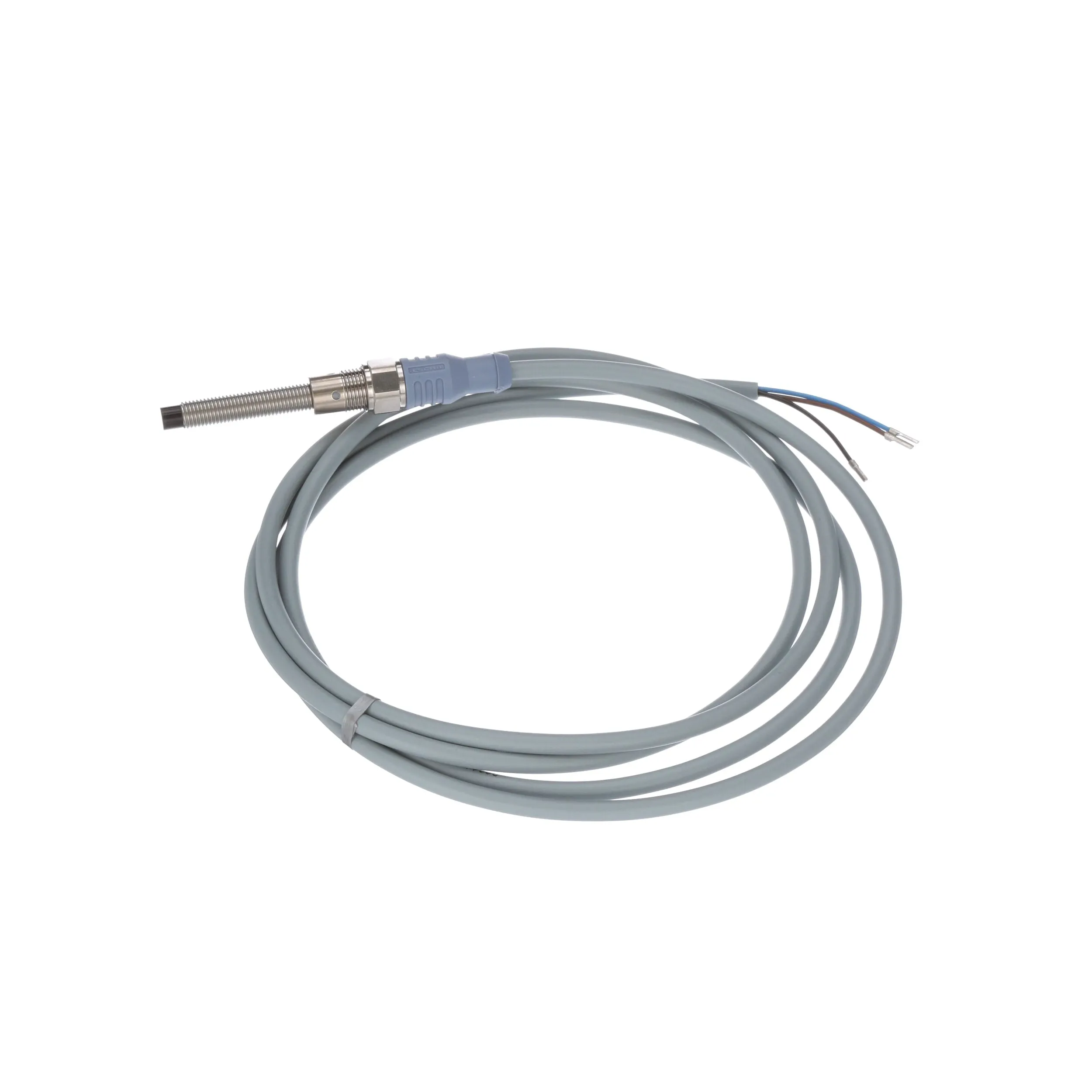

RS Pro Stainless Steel Barrel
RS Pro stainless steel inductive sensors offer ’Factor 1’ performance which enables them to sense all metals – both ferrous and non-ferrous – at the same distance offering greater sensing confidence.
Stainless steel body with PBT sensing face
High impact and thermal resistance
2m PUR prewired and M12 connector versions
Connector versions supplied with a 2m PUR single-ended, straight connector lead
