Product Details
Product Attribute Attribute Value
Alternate Mfr Part Number 419482
Body Material Terluran GV15
Body Style Rectangular
Current, Switching 2 A
Dimensions 67.6mm L x 91mm H
Indicator LED
Light Source Infrared LED
Material, Lens Glass
Maximum Operating Temperature 60 C
Measurement Range 2 m
Minimum Operating Temperature -20 C
Operating Temperature, Maximum 60 C
Operating Temperature, Minimum -20 C
Output SPDT
Power Dissipation 3 VA
Response Time 50 ms (Max.)
Sensing Mode Diffuse
Series
Standards UL Listed, CSA Certified, CE Marked
Supply Voltage 12-240 VAC ; 10-30 VDC
Technology Photoelectric
Type Reflective Sensors
Voltage, Switching 230/30 VAC/VDC
Weight 6.3 Oz.

Overview

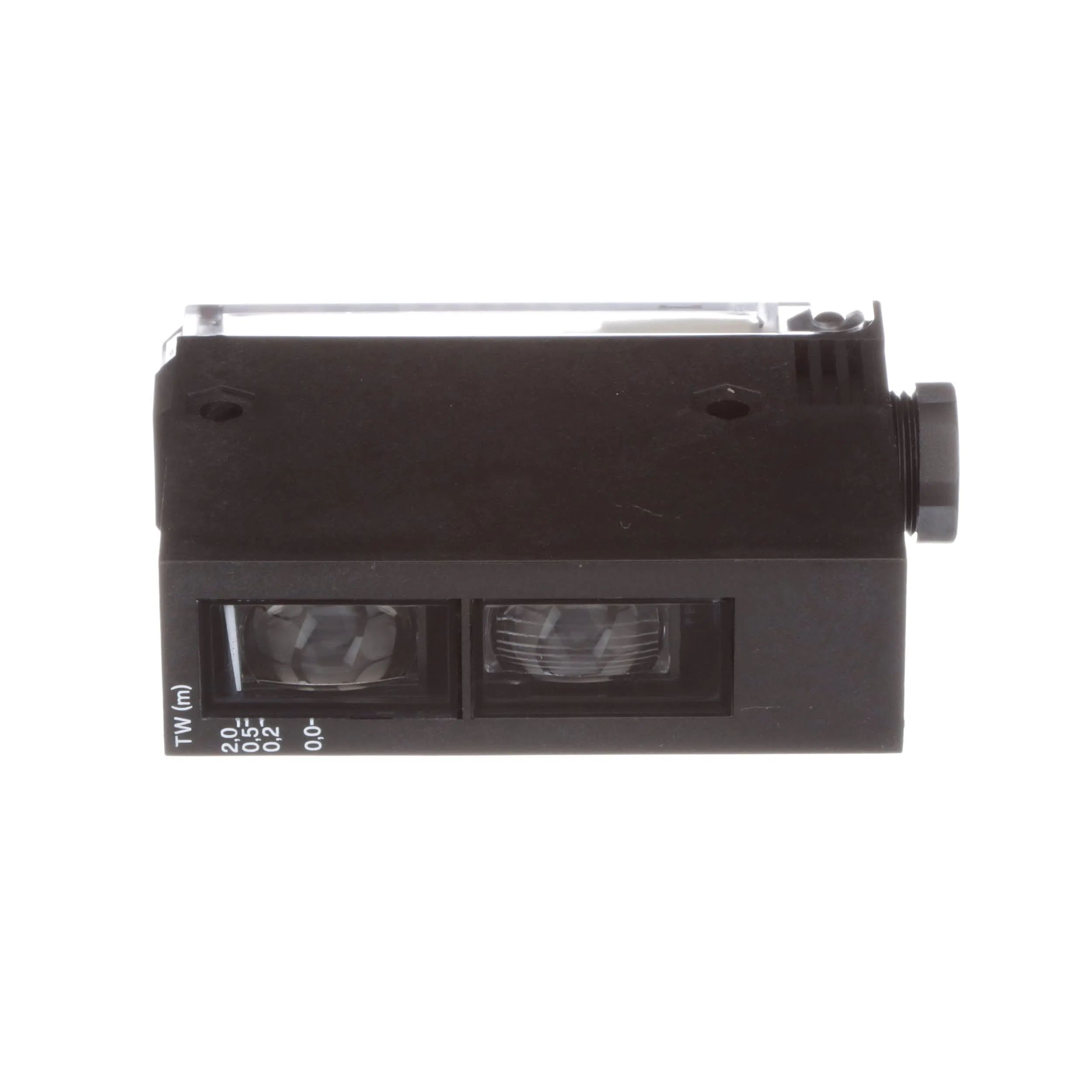

Photoelectric Sensor, 12 to 240 VAC/10 to 30 VDC Supply Voltage, 50 ms (Max.) Response Time

The Series 23 photoelectric sensors allow adjustable precision background suppression to at least a 6' (2 m) distance.

Features

  • Adjustable Sharp Background Suppression
  • Sensing Range Display on Housing
  • Optional Timer Function

    Specifications
  • Sensor Dimensions: 62.4 mm L × 12.5 mm W × 30.5 mm H
  • Output: SPDT 2 A Relay
  • Housing Material: Terluran GV15
  • Lens Material: Glass
  • Operating Temperature: -4°F to 140°F
  • Electrical Connection: Terminal Housing
  • Sealing: IP 65
  • Pepperl Fuchs Factory Automation RLK23-8-H-2000-IR/31/104/116
    • DefaultTitle

    $ 78.98

    $ 60.75
